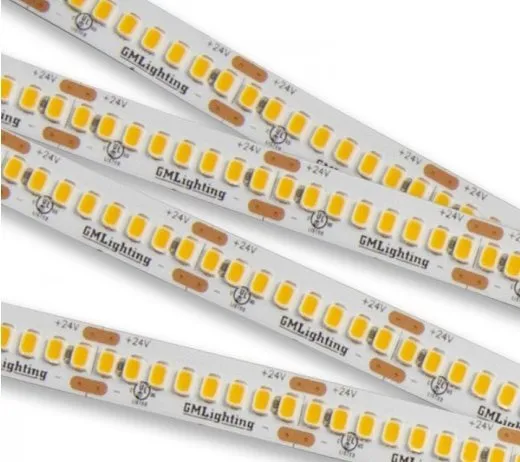

Name: GM Lighting LTR-S-24V 2.5W 100FT LED Tape Indoor Location 27K-40K
SKU: 75633

LTR-S Spec Series Indoor Location 24VDC 2.5W

Our Specification Series provides the ultimate architectural-grade option. Incorporating features that defines the Spec Series as truly state of the art linear LED tape for applications that not only require, but demand the best optics in the industry. Choose between color temps from 2700K to 4000K.

24VDC
2.5W / ft. and 5.8W / ft.
90 CRI
2700K, 3000K, 3500K, 4000K
Remote control with GM’s LUXcontrol™ App and controllers
Dry location
240 LED's per meter (72 / ft.)
Cuttable every 1"
Custom lengths available
Premium diodes
120° viewing angle
Dimmable
3M adhesive back
Maximum run on a given lead is 32'-8" (2.5W) and 16'-4" (5.8W)
Includes Sure-tite connectors
UL certification
Class 2
Closet Rated. Compliant with NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5)
5 year warranty when paired with GM power supply

Spec Sheet

Info

Catalog No.	Reel Length	Lumens/Foot	Watts/Foot	CRI	Color Temp.	Max. Run
LTR-S-24V-2.5W-27K-16	16'-4" (5M)	328	2.5W	95	2700K	32'-8"
LTR-S-24V-2.5W-30K-16	16'-4" (5M)	358	2.5W	95	3000K	32'-8"
LTR-S-24V-2.5W-35K-16	16'-4" (5M)	364	2.5W	95	3500K	32'-8"
LTR-S-24V-2.5W-40K-16	16'-4" (5M)	373	2.5W	95	4000K	32'-8"
LTR-S-24V-2.5W-27K-100	100' (30M	328	2.5W	95	2700K	32'-8"
LTR-S-24V-2.5W-30K-100	100' (30M)	358	2.5W	95	3000K	32'-8"
LTR-S-24V-2.5W-35K-100	100' (30M)	364	2.5W	95	3500K	32'-8"
LTR-S-24V-2.5W-40K-100	100' (30M)	373	2.5W	95	4000K	32'-8"
Kelvin temp. =/-100K. 16'-4" and 100' reel includes 24" lead affixed to tape. 16'-4" reel includes (3) ESTW-60 Sure-Time connectors. 100' reel includes (10) ESTW-60 Sure-Time connectors.
