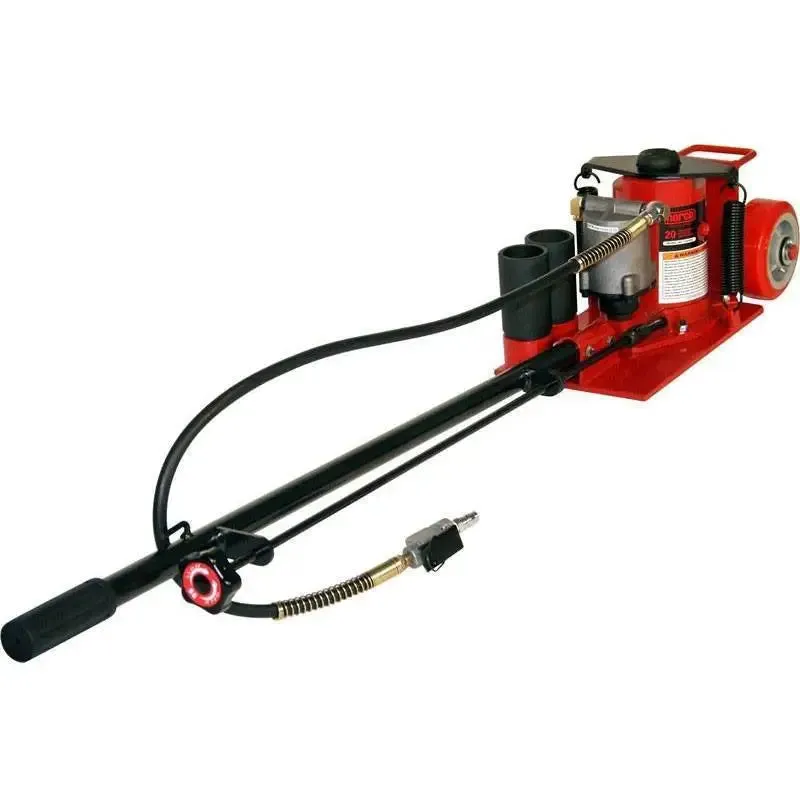

Norco's 20 Ton Capacity Low Height Air Operated Hydraulic Hand Jack is perfect for heavy-duty trucks, agricultural equipment, and construction equipment. With its convenient, low height, this jack is ideal for loaded trucks and trailer roadside service calls.
Features:
- A long handle with 36-1/2in reach helps position the jack under vehicles with a low overhang.
- The tool may be stored in a vertical position.
- The hand grip also works as a stand to store the jack in a vertical position.
- The compact design fits easily between tandem wheels.
- Parkerized coating on pump piston, extension screw and extension adapters, and chrome coated ram protect against rust.
- A removable extension screw is used with the two 4in extension adapters / included for added height when necessary.
- Self-retracting ram eliminates manual lowering of the jack.
- 5 1/4in diameter high-impact composite wheels make maneuverability easy.
- A fast, efficient air pump reduces lifting time and has a built-in relief mechanism that prevents the jack from being used beyond its maximum capacity.
- A convenient push-button air valve connected to an in-line filter prohibits from entering the air/hydraulic system.
Specs:
Low Lift Height: 8.625inHigh Lift Height: 22.75in
Stroke: 4in
Screw Extension: 2.75in
Base Size: 9.25in x 17.25in
P.S.I. Range: 100-130
