Description
Description

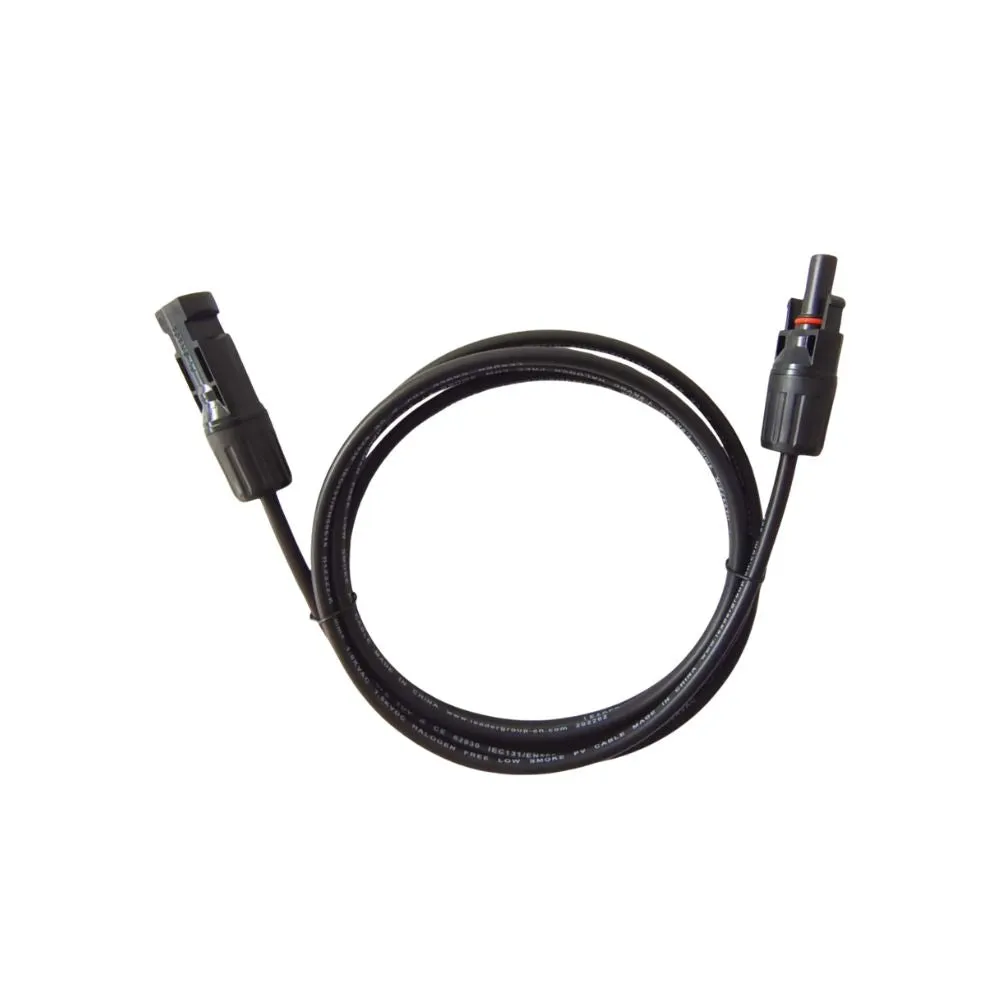

Solar Cable Extension is a solar cable complete with fitted MC4 connectors. Used in photovoltaic power generation and solar systems to interconnect solar panels and electrical components in the photovoltaic system.
Cable sizes are available, from 4mm2 to 6mm2, from 0.5m to 20m. It is suitable for outdoor extreme environments and is also UV, ozone, and hydrolysis resistant.
Solar Extension Cable is a solar cable complete with fitted MC4 connectors. Used in photovoltaic power generation and solar systems to interconnect solar panels and electrical components in the photovoltaic system.
Features
- Halogen-free, flame retardant, ROHS
- 25-years of production experience in power cable
- TUV approved and TUV 2PEG, 1169/08.2007 {VI-F
- Double insulation suitable for harsh outdoor environments.
- Stable connections and reduced maintenance cost.
Specifications
Specification of Solar Cable Extension
| pv1 f solar cable | ||
|---|---|---|
| Conductor | Tinned fine Re copper strands,according to VDE0295/IEC60228.Class5 |
| Insulation | Polyolefin Copolymer electron-beam cross-linked | |
| Sheath Jacket | Polyolefin Copolymer electron-beam cross-linked | |
| Nominal Voltage | Uo/U=600V/1000VAC,1000/1800VDC | |
| Test voltage | 6500V,50Hz,5Min | |
| Temperature Rating | -40oC-125oC, More Than 25 Years (TUV) | |
| Fire Performance | IEO 60332-1 | |
| Smoke Emission | IEC61034,EN 50268-2 | |
| Low Fire Load | DIN 51 900 | |
| Certification | TUV 2PFG 1169/08.2007 PVI-F | |
